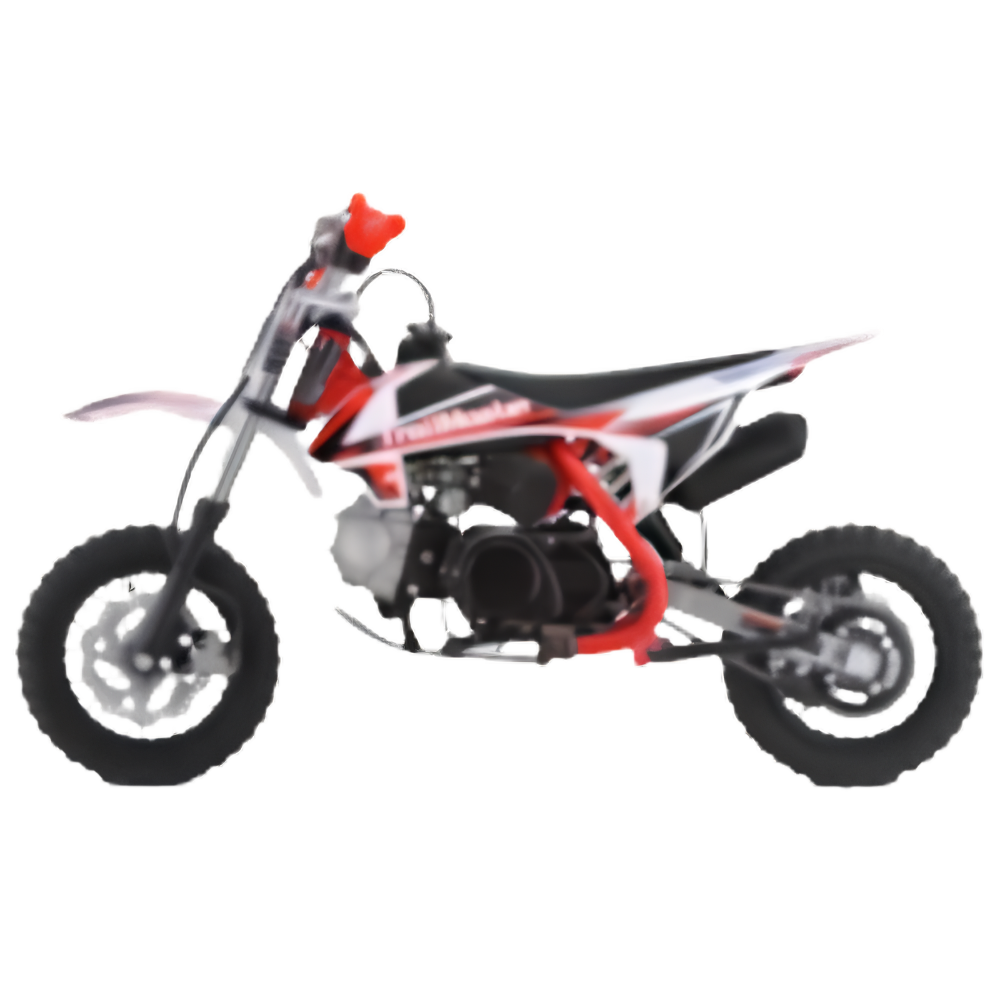

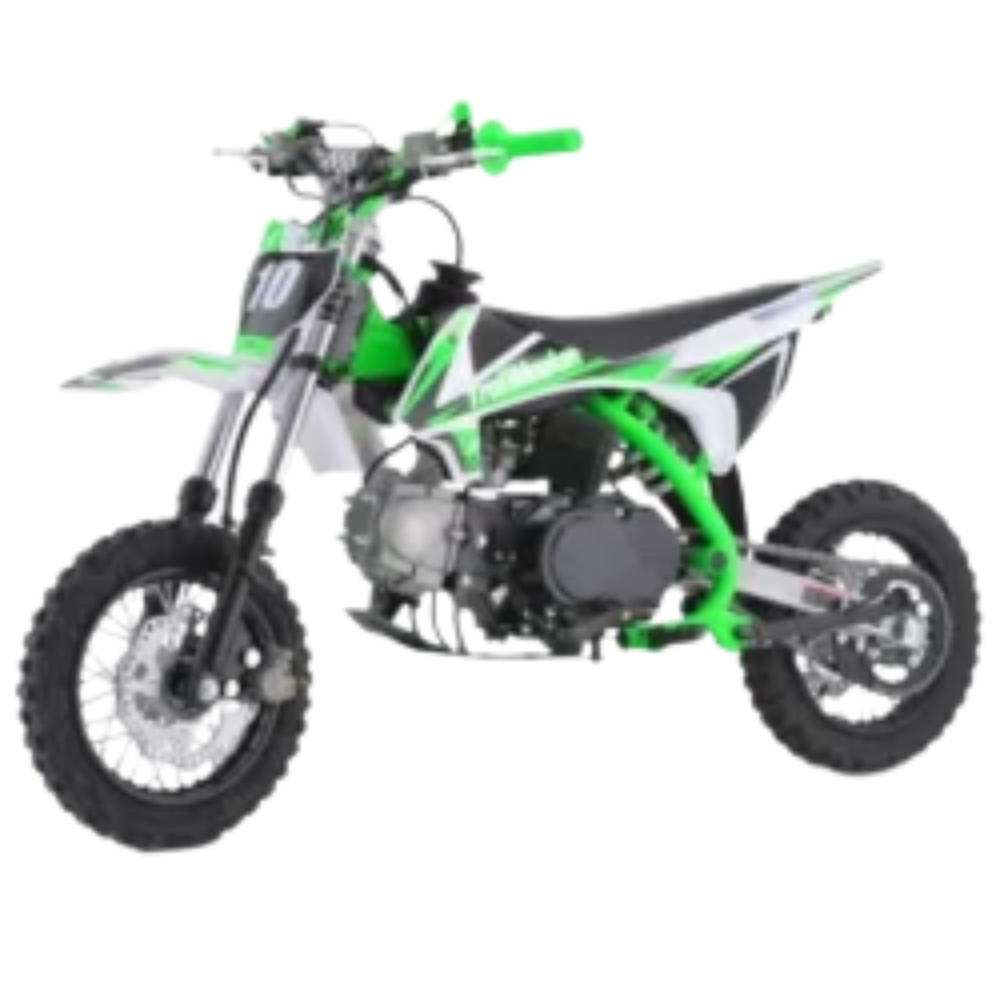

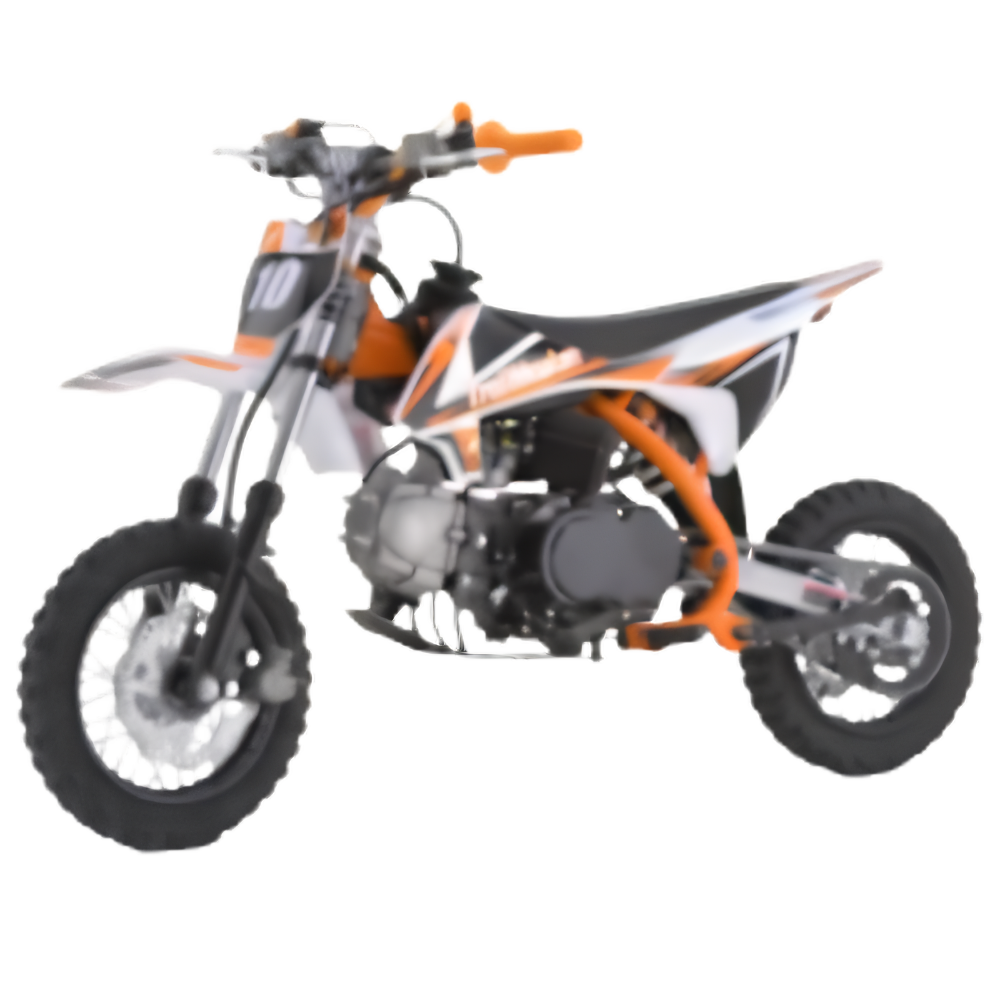

The TrailMaster TM10 is designed as an approachable dirt bike for kids and youth riders who are ready to start learning off-road riding. With a low 24.4-inch seat height, lightweight 111-pound net weight, and compact chassis, the TM10 is designed to be maneuverable and responsive for developing riders.

Its 110cc four-stroke engine is paired with a 4-speed semi-automatic transmission, allowing beginners to learn gear selection without operating a traditional manual clutch lever. A simple suspension setup, aggressive knobby tires, and hydraulic disc brakes front and rear provide a capable platform for recreational off-road riding.

Key Features

110cc Four-Stroke Engine

The TM10 is powered by a single-cylinder, air-cooled four-stroke engine designed for straightforward operation and low-maintenance recreational riding.

• 110cc displacement


• Single-cylinder, 4-stroke engine


• Air-cooled design


• Maximum power: 5.0 kW @ 8,000 ± 500 rpm


• Maximum torque: 7.5 N·m @ 5,500 ± 500 rpm


• CDI ignition


• Kick start

4-Speed Semi-Automatic Transmission

The semi-automatic transmission makes the TM10 approachable for beginners by allowing riders to shift gears without operating a manual clutch lever.

• 4-speed semi-automatic transmission


• Foot-operated shifter


• No traditional hand-operated clutch required


• Designed for riders learning off-road fundamentals

Compact Youth-Friendly Design

A low seat height and relatively light chassis help make the TM10 easier to manage for younger riders.

• 24.4-inch seat height


• 111 lb net weight


• 39.4-inch wheelbase


• Compact 59.8-inch overall length


• Sporty dirt-bike styling

Front & Rear Suspension

The TM10 uses a straightforward suspension setup designed to handle bumps and uneven off-road terrain.

• Telescopic front forks


• Rear swingarm


• Rear mono-shock


• Non-adjustable front suspension

Hydraulic Disc Brakes

Hydraulic disc brakes at both ends provide consistent braking performance for recreational trail riding.

• Front hydraulic disc brake


• Rear hydraulic disc brake


• Dual hydraulic braking system

Aggressive Off-Road Tires

The TM10 is equipped with knobby tires designed for traction on dirt and other suitable off-road surfaces.

• Front tire: 2.5 × 10


• Rear tire: 2.5 × 10


• Aggressive knobby tread


• Designed for off-road riding

Sporty Motocross Styling

The TM10 features a compact motocross-inspired appearance designed to give young riders the look and feel of a full-size dirt bike in a smaller package.

• Sporty body styling


• Available in several color options


• Purpose-built dirt-bike configuration

Specifications

Engine & Performance

Specification	Details
Model	TrailMaster TM10
Engine	Single-Cylinder, 4-Stroke
Cooling	Air-Cooled
Displacement	110cc
Maximum Power	5.0 kW @ 8,000 ± 500 rpm
Maximum Torque	7.5 N·m @ 5,500 ± 500 rpm
Maximum Speed	55 mph
Ignition	CDI
Starting System	Kick Start
Fuel Capacity	0.58 gal

Transmission

Specification	Details
Transmission	4-Speed Semi-Automatic
Shifter	Foot Shifter
Clutch Operation	Semi-Automatic

Suspension & Brakes

Specification	Details
Front Suspension	Telescopic Forks
Rear Suspension	Swingarm with Mono-Shock
Front Brake	Hydraulic Disc
Rear Brake	Hydraulic Disc

Wheels & Tires

Specification	Details
Front Tire	2.5 × 10
Rear Tire	2.5 × 10
Tire Type	Off-Road Knobby

Dimensions & Weight

Specification	Details
Ground Clearance	8.3 in
Wheelbase	39.4 in
Seat Height	24.4 in
Net Weight	111 lbs
Gross Weight	126.8 lbs
Max Load	TBD
Overall Dimensions	59.8 × 25.6 × 33 in
Shipping Dimensions	49.4 × 13.2 × 24.2 in

Ideal Applications

• Youth dirt-bike riding


• Beginner off-road training


• Recreational trail riding


• Motocross-style practice on suitable private property


• Learning semi-automatic motorcycle operation


• Weekend outdoor recreation

Rider Safety & Guidance

The TrailMaster TM10 is intended for appropriate youth/off-road use. Young riders should always wear a properly fitted helmet along with eye protection, gloves, long pants, protective footwear, and other suitable riding gear.

Adult supervision and instruction are recommended for younger or inexperienced riders. Always operate the bike in an appropriate, controlled area where off-road riding is permitted.

Before every ride, inspect the brakes, tires, controls, chain, suspension, and fasteners. Riders should also remain within the manufacturer's specified load limits once the maximum load specification is confirmed.

Basic Care & Maintenance

• Check engine oil regularly and maintain the recommended level.


• Inspect and lubricate the drive chain as needed.


• Check hydraulic brake operation before every ride.


• Inspect tires for wear and proper inflation.


• Check the telescopic forks and rear mono-shock for damage or leakage.


• Inspect wheel spokes, rims, fasteners, and controls periodically.


• Keep the air filter and engine area clean.


• Follow the manufacturer's recommended maintenance schedule.

Why Choose the TrailMaster TM10?

The TrailMaster TM10 combines a 110cc four-stroke engine, 4-speed semi-automatic transmission, low 24.4-inch seat height, lightweight chassis, hydraulic disc brakes, and knobby off-road tires in a compact youth dirt-bike package.

Its semi-automatic transmission makes learning to ride and shift gears more approachable, while the simple suspension and compact dimensions provide a manageable platform for recreational off-road riding.
