RANE ONE Professional Motorized DJ Controller

Tactile Vinyl-Style Control with Powerful Digital DJ Performance

The RANE ONE Professional Motorized DJ Controller combines the tactile experience of traditional turntables with the flexibility of a modern digital DJ system. Built around two high-torque 7.2-inch motorized platters, the RANE ONE provides responsive, customizable control for scratching, mixing, cueing, and live performance.

With comprehensive I/O, integrated filters and EQs, 16 multi-function performance pads, dedicated effects controls, and Serato DJ Pro integration, the RANE ONE is designed to give DJs hands-on control over their music in a professional, portable format.

Key Features

7.2-Inch High-Torque Motorized Platters

Two 7.2-inch motorized platters deliver a responsive, vinyl-like playing experience. Customizable torque settings let DJs adjust the feel to suit their preferred mixing and scratching style.

The sturdy acrylic surfaces are designed for intensive DJ performance, while classic plunger-style start/stop buttons provide a traditional turntable-inspired touch.

16 Multi-Function Performance Pads

Sixteen velocity-sensitive performance pads provide direct access to a wide range of creative performance functions.

Use the pads to:

• Trigger Hot Cues


• Launch saved loops


• Perform Loop Rolls


• Trigger samples


• Slice beats


• Access Serato Scratch Bank


• Control multiple performance modes

Dedicated Effects Controls

Six dedicated effects buttons and two aluminum paddle controls provide hands-on access to software effects. DJs can trigger and manipulate effect combinations during builds, drops, transitions, and other live performance moments.

MAG FOUR Crossfader

The ultra-light MAG FOUR crossfader provides precise control for cuts and scratch techniques. Its tension can be adjusted, with independent contour and reverse controls for personalized performance.

Comprehensive Connectivity

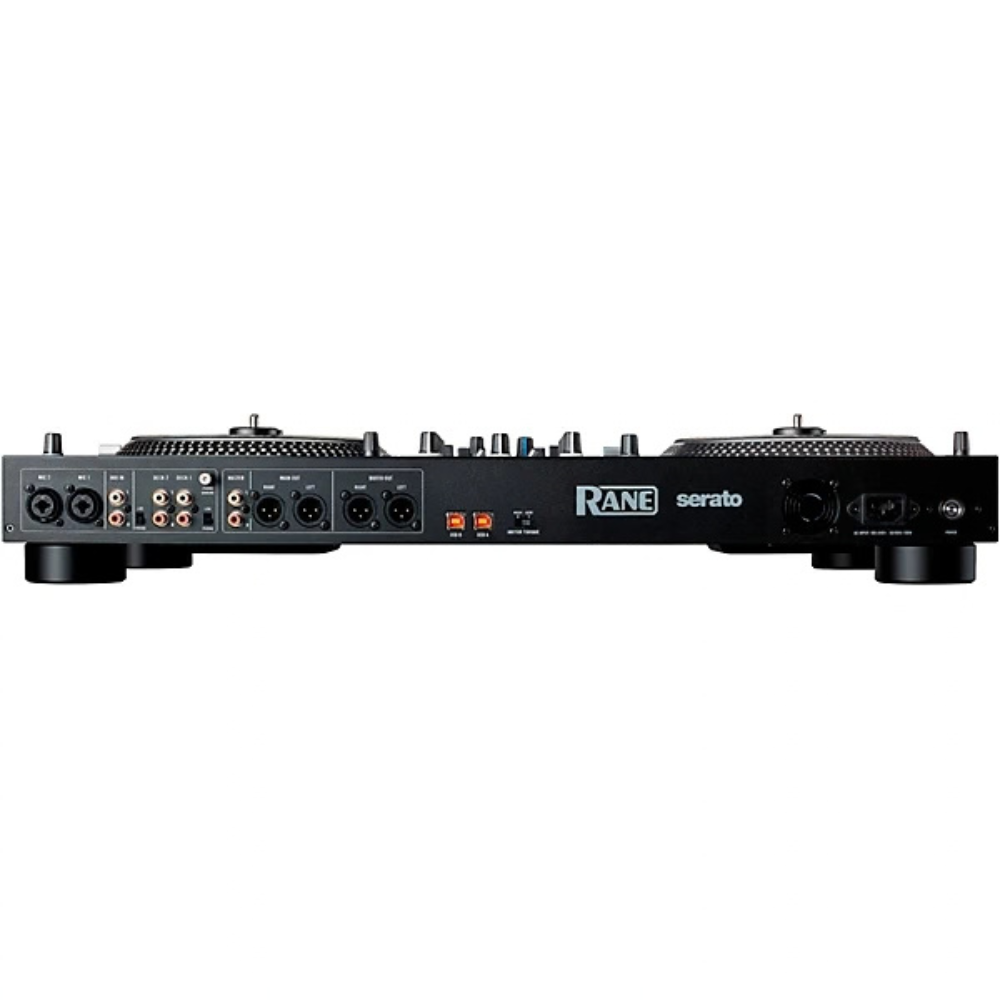

The RANE ONE provides extensive connectivity for professional DJ setups, including switchable line/phono inputs, multiple microphone connections, auxiliary input, booth output, and professional XLR main outputs.

Serato DJ Pro Integration

The RANE ONE integrates with Serato DJ Pro, providing software-based control over your digital music library and performance tools.

Sound-Shaping Controls

Each deck includes dedicated 3-band EQ, high-pass/low-pass filtering, and loop controls for shaping your mix and creating transitions.

Turntable-Style Start/Stop

Classic plunger-style start/stop controls complement the motorized platters and reinforce the traditional turntable-style performance experience.

Connectivity

Inputs

Input	Details
Microphone 1/2	Combo XLR/1/4" TRS, Mic/Line Switchable
Analog Gain	25 dB
Maximum Mic Input	110 mV
Mic Gain Trim	Off to +26 dB
Mic Tone Control	2-Band
Aux Input	RCA Stereo Pair
Aux Maximum Input	4 Vrms
Aux Gain Trim	Off to +12 dB
Aux Tone Control	2-Band
CD/Phono Inputs 1/2	RCA Stereo Pairs, Switchable
CD Input	Line
CD Maximum Input	4 Vrms
CD Gain Trim	Off to +12 dB
CD Tone Control	3-Band, Full-Cut to +10 dB
Phono	RIAA
Phono RIAA Curve	±0.25 dB
Phono Gain @ 1 kHz	31.5 dB
Phono Maximum Input @ 1 kHz	106 mV

Outputs

Output	Details
Main	XLR
Main Maximum Output	8 Vrms
Booth	XLR
Booth Maximum Output	8 Vrms
Master	RCA Stereo Pair
Master Maximum Output	4 Vrms
Headphones	1/4" & 1/8" TRS
Headphone Maximum Output Voltage	4 Vrms
Headphone Output Power	50 mW @ 50 Ω

Digital Audio Specifications

Specification	Details
A/D & D/A Converters	Cirrus Logic
Converter Resolution	24-bit PCM
Sampling Rate	48 kHz
Digital Signal Processing	32-bit Floating Point, Double Precision
ADC Dynamic Range	113 dB
DAC Dynamic Range	113 dB
CD Input to Analog Output	110 dB
CD Input to USB Output	113 dB
USB Input to Analog Output	113 dB

Audio Performance

Specification	Details
Main Output THD+N	0.004%
Booth Output THD+N	0.004%
Master Output THD+N	0.004%
CD Input THD+N	0.004%
Main Frequency Response	Flat
Booth Frequency Response	Flat
Master Frequency Response	Flat
Headphone Dynamic Range	108 dB
Phono Dynamic Range	102 dB
Aux Dynamic Range	114 dB

Performance Controls

Performance Pads

Feature	Details
Total Pads	16
Pads Per Deck	8
Pad Type	Velocity-Sensitive
Backlighting	Multi-Color
Modes	8 Per Pad

Faders

Control	Details
Crossfader	1 MAG FOUR
Crossfader Tension	Adjustable
Crossfader Contour	Independent
Crossfader Reverse	Independent
Channel Faders	2 Standard
Channel Fader Contour	Shared
Channel Fader Reverse	Shared

Physical Specifications

Specification	Details
Dimensions (W x D x H)	26.5 x 13.6 x 4.9 in
Dimensions (Metric)	674 x 345 x 124.3 mm
Weight Including Platters	23.55 lb / 10.68 kg
Power Connection	IEC
Power Supply	100–240V, 50/60 Hz
Power Consumption	50W
USB Computer Connections	2 x USB Type-B

Included Features

• Two 7.2-inch motorized platters


• Quick-release acrylic platter disks


• MAG FOUR crossfader


• 16 multi-function performance pads


• Six dedicated software FX buttons


• Two aluminum FX paddles


• High/low-pass filters


• 3-band EQs


• Dedicated loop controls


• Serato Scratch Bank support


• XLR main output


• XLR booth output


• Two line/phono inputs


• Two TRS/XLR microphone inputs


• Two USB computer connections


• Turntable-style start/stop controls


• Serato DJ Pro integration

Ideal Applications

The RANE ONE is well suited for:

• Professional DJ performances


• Scratch and turntablism


• Club and venue performances


• Mobile DJ setups


• Open-format DJing


• Hip-hop and scratch performances


• Live mixing


• Home DJ practice


• Serato-based DJ systems


• Portable professional DJ rigs

Professional Connectivity

The RANE ONE is designed to accommodate a wide range of DJ sources and performance equipment. Switchable line/phono inputs allow connection of compatible CDJs or turntables, while dual USB computer connections support flexible digital DJ configurations.

The system also includes microphone inputs, an auxiliary input, dedicated booth output, professional XLR main outputs, and dual headphone connections.

Sound-Shaping & Performance

With dedicated 3-band EQs, high- and low-pass filters, loop controls, performance pads, and software effects, the RANE ONE provides extensive hands-on tools for building transitions and shaping your sound.

The combination of motorized platters and digital performance controls allows DJs to move between traditional turntable techniques and modern software-based performance functions from a single controller.

Why Choose the RANE ONE?

The RANE ONE Professional Motorized DJ Controller brings together high-torque motorized platters, vinyl-style controls, advanced performance pads, professional audio connectivity, and Serato DJ Pro integration.

With its 7.2-inch motorized platters, MAG FOUR crossfader, 16 multi-function pads, dedicated FX paddles, comprehensive line/phono and microphone inputs, professional XLR outputs, and portable 23.55-pound design, the RANE ONE is built for DJs who want tactile control without giving up the flexibility of a modern digital performance system.
