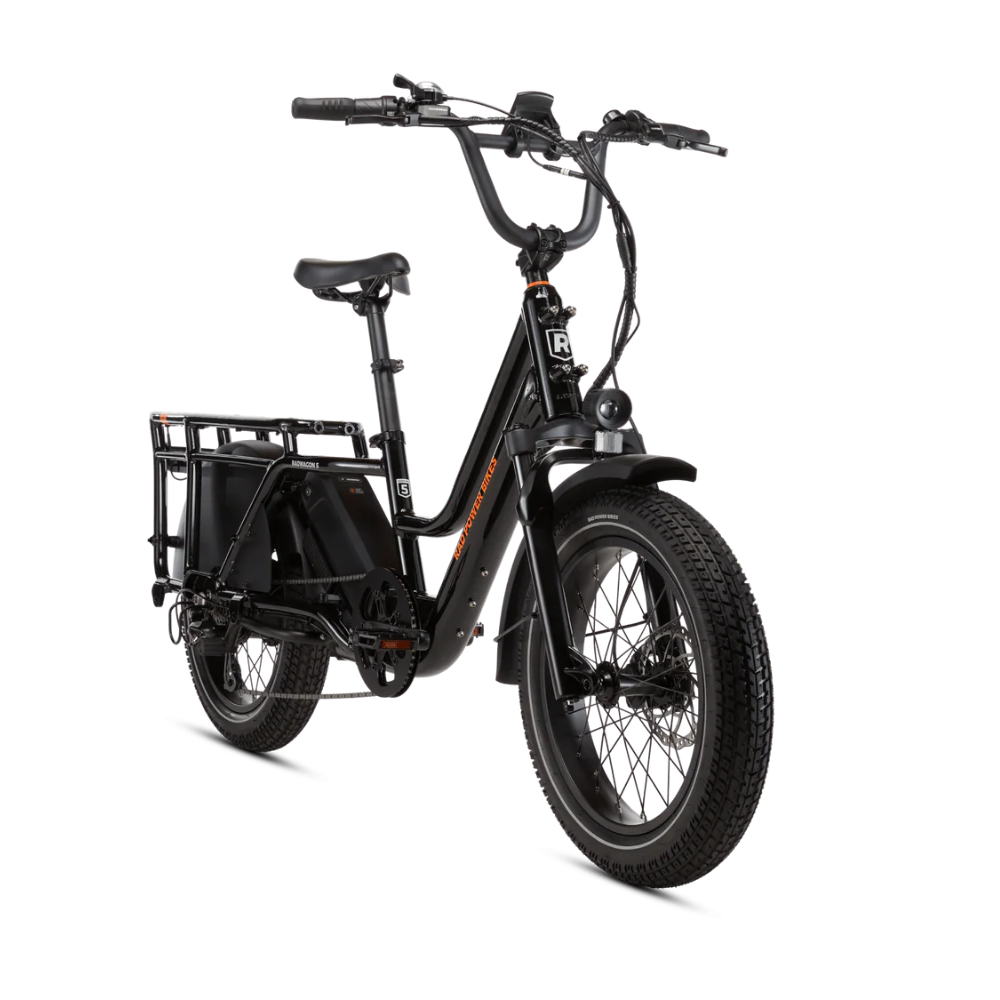

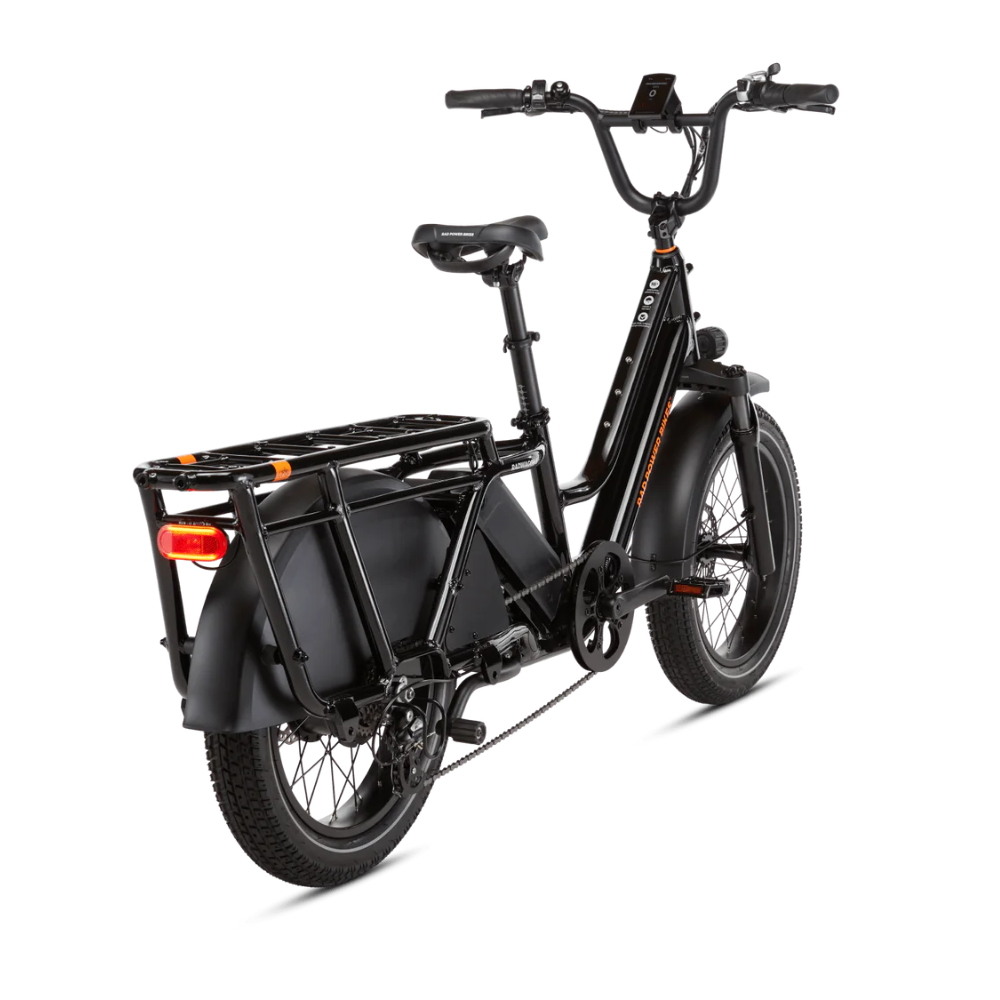

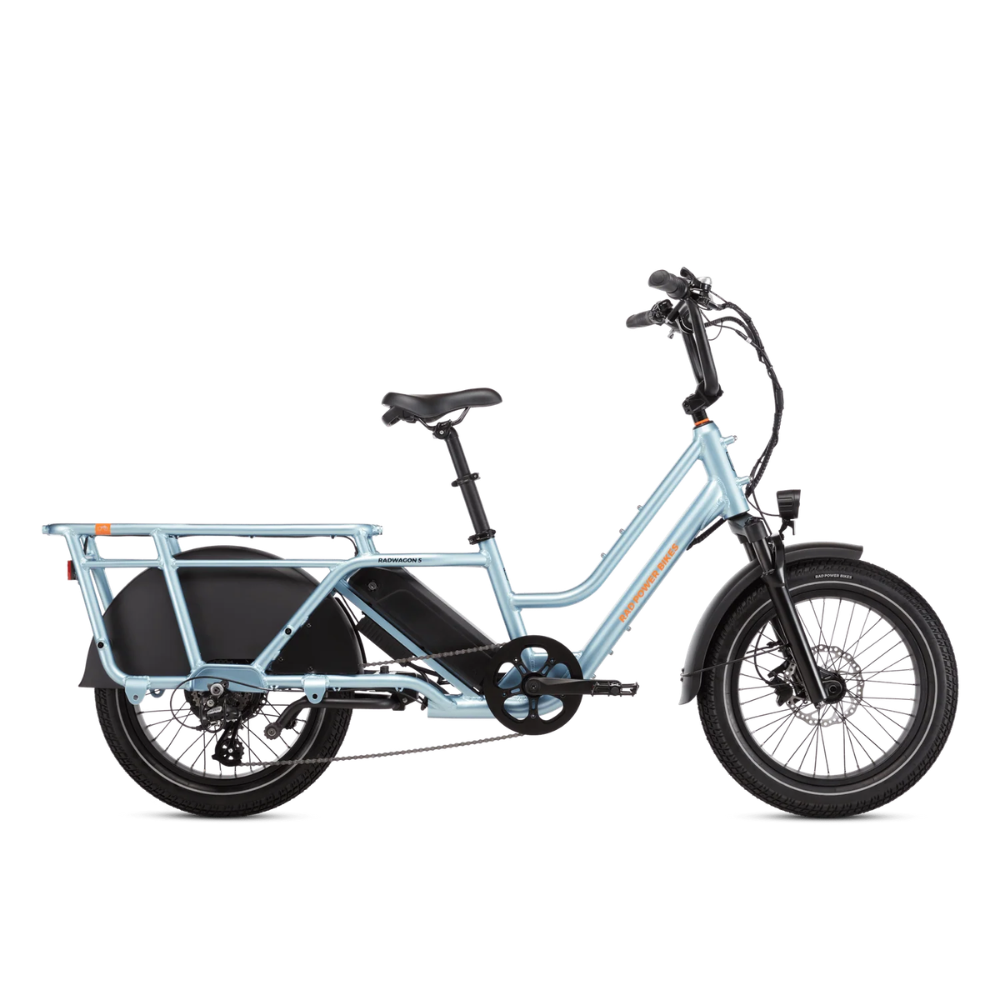

Rad Power Bikes RadWagon 5 Electric Cargo Bike – 750W, 48V, 20 MPH

High-Torque Cargo E-Bike with 60+ Mile Range, Hydraulic Brakes & 350 lb Payload

The Rad Power Bikes RadWagon 5 is a versatile electric cargo bike designed for everyday transportation, family rides, errands, and heavy-duty hauling. Built around a strong 6061 aluminum alloy step-through cargo frame and a lower center of gravity, it is designed to provide stable handling when carrying riders, passengers, groceries, or gear.

A 750W brushless geared hub motor provides high-torque performance for loaded riding, while the removable 48V lithium-ion battery supports a claimed range of 60+ miles per charge, depending on load, terrain, and pedal-assist level. The bike reaches a claimed top speed of 20 mph and is described as a Class 2 e-bike.

Hydraulic disc brakes with 180mm rotors provide responsive stopping performance, while custom 22 x 3-inch RadWagon tires are designed for stability and maneuverability. Integrated LED lighting, a backlit LCD display, seven-speed Shimano gearing, and compatibility with a range of Rad accessories make the RadWagon 5 a practical platform for everyday cargo transportation.

Key Features

750W High-Torque Geared Hub Motor

The RadWagon 5 features a 750W brushless geared hub motor designed to deliver high torque for carrying heavy loads and navigating demanding routes.

48V Removable Battery

The removable 48V lithium-ion battery features an intelligent battery management system and provides a claimed range of more than 60 miles per charge under suitable riding conditions.

60+ Mile Claimed Range

The bike offers a claimed range of 60+ miles, with actual range depending on cargo weight, rider weight, terrain, riding conditions, and assist level.

20 MPH Class 2 Performance

The RadWagon 5 has a claimed top speed of 20 mph using the throttle or pedal assist and is described as a Class 2 electric bike.

Step-Through Cargo Frame

The 6061 aluminum alloy step-through frame provides easier mounting and dismounting while supporting the bike's cargo-oriented design.

Lower Center of Gravity

The design incorporates a lower center of gravity intended to improve stability and handling when carrying passengers or heavier loads.

Hydraulic Disc Brakes

Hydraulic disc brakes paired with 180mm rotors provide strong and controlled braking performance for loaded riding.

22 x 3-Inch Custom Tires

The custom 22 x 3-inch RadWagon tires provide a wide contact area designed to improve stability and maneuverability.

7-Speed Shimano Drivetrain

The seven-speed Shimano drivetrain provides multiple gearing options and smooth shifting for varying terrain and cargo loads.

Backlit LCD Display

The display provides key ride information, including:

• Battery status


• Speed


• Odometer


• Pedal-assist settings

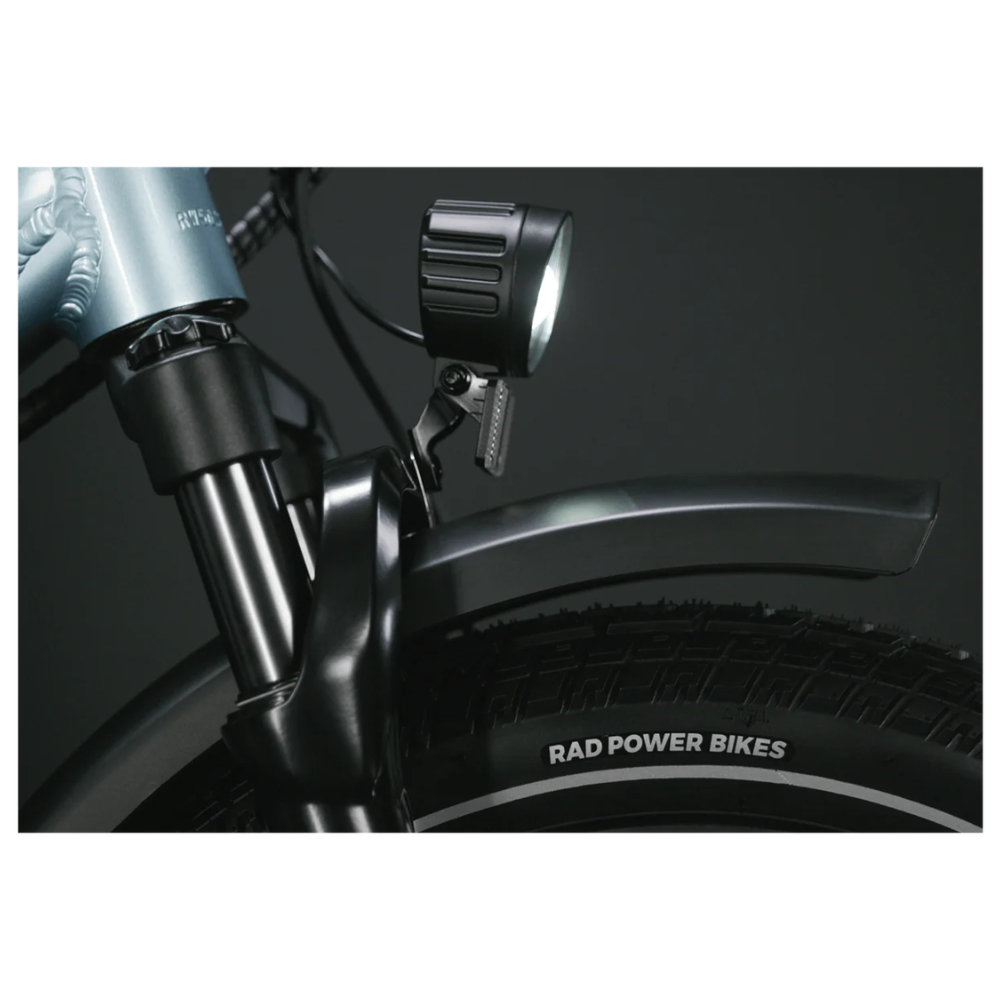

Integrated LED Lighting

Integrated front and rear LED lights provide visibility, with the rear lighting incorporating a brake-light function.

Specifications

Motor & Performance

Specification	Details
Motor Type	Brushless Geared Hub Motor
Motor Power	750W
Motor Design	High Torque
Top Speed	Up to 20 mph
E-Bike Classification	Class 2
Throttle	Yes
Pedal Assist	Yes

Battery & Range

Specification	Details
Battery Type	Lithium-Ion
Battery Voltage	48V
Battery	Removable
Battery Management	Intelligent Management System
Claimed Range	60+ miles per charge*

Brakes, Tires & Drivetrain

Specification	Details
Brake Type	Hydraulic Disc
Rotor Size	180mm
Tire Size	22 x 3 inches
Tire Type	Custom RadWagon Tires
Drivetrain	7-Speed Shimano

Frame & Capacity

Specification	Details
Frame Material	6061 Aluminum Alloy
Frame Design	Step-Through Cargo
Cargo Capacity	Up to 350 lbs
Capacity Includes	Rider + Cargo + Passengers
Approximate Weight	77 lbs including battery
Center of Gravity	Lowered for Stability

Display & Lighting

Specification	Details
Display	Backlit LCD
Display Information	Battery, Speed, Odometer & PAS
Headlight	Integrated LED
Taillight	Integrated LED
Brake Light	Yes

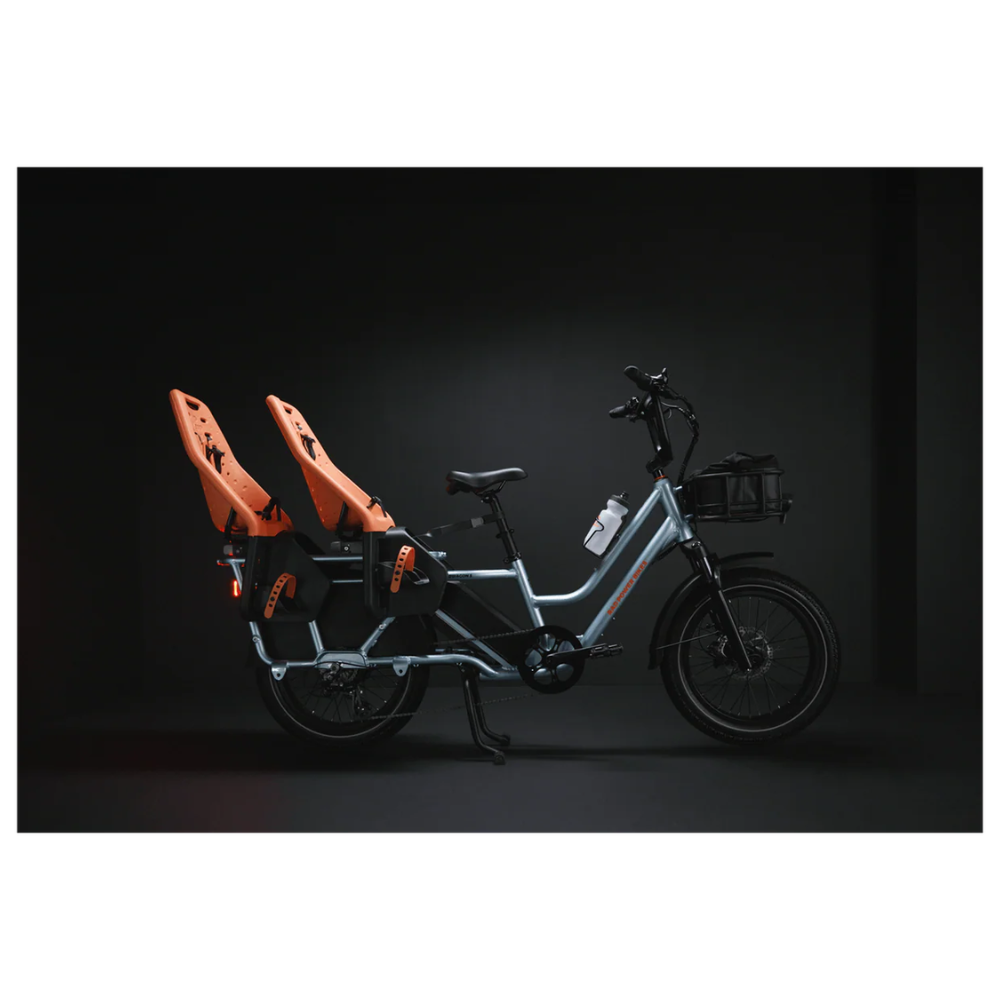

Passenger & Cargo Compatibility

The RadWagon 5 is designed to support a variety of compatible cargo and passenger configurations. According to the supplied specifications, it is compatible with:

• Child seats


• Running boards


• Caboose accessories


• Other compatible Rad accessories

The total stated capacity is 350 lbs, including the rider, passengers, and cargo.

Comfort & Handling

Stable Cargo-Focused Design

The lower center of gravity and purpose-built cargo frame are designed to provide controlled handling when the bike is loaded.

Easy Step-Through Access

The step-through frame makes mounting and dismounting more convenient, particularly when the bike is loaded or used for frequent stops.

Versatile Gearing

The seven-speed Shimano drivetrain provides flexibility for different road conditions and changing cargo loads.

Ideal Applications

The RadWagon 5 is well suited for:

• Family transportation


• School drop-offs


• Grocery shopping


• Daily commuting


• Urban transportation


• Carrying children with compatible accessories


• Carrying recreational gear


• Heavy cargo hauling


• Neighborhood errands


• Weekend family rides


• Replacing some short vehicle trips

Rider & Cargo Safety

• Always wear a properly fitted helmet and appropriate protective equipment.


• Never exceed the 350 lb total capacity, including rider, passengers, and cargo.


• Secure all cargo and passengers using compatible equipment before riding.


• Distribute cargo weight evenly to maintain stable handling.


• Allow additional stopping distance when carrying heavier loads.


• Inspect the hydraulic brakes, tires, wheels, drivetrain, battery, and accessories before each ride.


• Make sure all passenger and cargo accessories are correctly installed and secured.


• Use the integrated lighting when riding in low-light conditions.


• Follow applicable local regulations governing Class 2 electric bicycles and passenger/cargo transportation.

Performance & Range Note

The stated 60+ mile range and 20 mph top speed are manufacturer-provided performance specifications. Actual range can vary based on rider weight, passenger and cargo weight, terrain, weather, riding style, tire pressure, battery condition, and pedal-assist level.

Why Choose the RadWagon 5?

The Rad Power Bikes RadWagon 5 combines a 750W high-torque geared hub motor, removable 48V battery, 60+ mile claimed range, 20 mph Class 2 performance, hydraulic disc brakes, seven-speed Shimano drivetrain, 22 x 3-inch tires, and a 350 lb total payload capacity. Its step-through aluminum cargo frame, lower center of gravity, integrated lighting, LCD display, and compatibility with passenger and cargo accessories make it a versatile platform for family transportation, commuting, errands, and everyday hauling.
