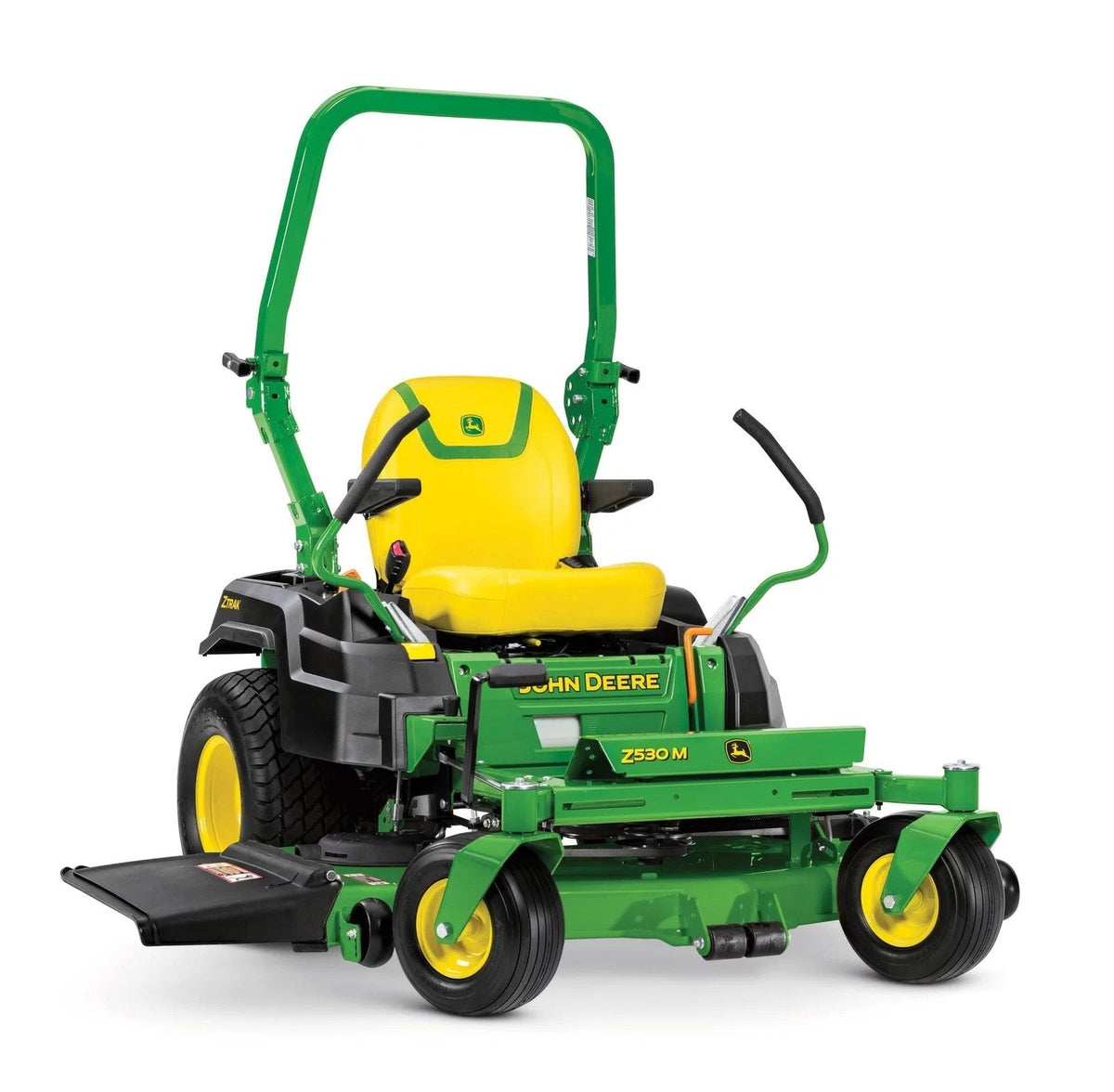

John Deere Z530M 60-in 24-HP V-Twin Zero-Turn Lawn Mower Rubber | BG21197

CONTROL CONSOLE INCLUDES AN EASY-TO-READ FUEL GAUGE

Control console



Electric fuel gauge

The control console is located to the right of the operator station and includes the following:

• Digital display
  • Easy-to-read fuel gauge keeps track of the amount of fuel remaining to minimize time spent stopping to refuel.
  • Hour meter shows operating hours to keep maintenance on schedule.
• Ignition switch
• Power take-off (PTO) control (yellow)
• Engine speed control (orange)
• Spring-loaded engine choke control so it is not inadvertently left on
• Space for an optional light kit switch
• Space for an additional electric control switch

FUEL SIGHT WIDOW AND FILL CAP

Fuel sight window



Fuel sight window and fuel fill cap

A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:

• Semi-clear material makes seeing how much fuel is in the tank quick and easy.
• Large, 3-in. (7.6-cm) diameter fuel-fill opening reduces the chance of spilling when adding fuel.
  • Fuel-fill opening is low and angled to make adding fuel easy.
• Cap is tethered to the fuel tank.
  • Less chance of fuel cap getting lost

MOWER DECK LIFT AND CUT HEIGHT

Mower lift pedal and cut-height adjustment



Mower deck cut-height adjustment and transport lock

Mower deck cutting height can be adjusted from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:

• A convenient foot-lift pedal is used to raise the mower deck for setting cut height or locking mower in the raised or transport position.
• A lift-assist spring is provided to optimize the effort it takes to raise the mower deck.

CUT-HEIGHT ADJUSTMENT AND TRANSPORT LOCK

• To adjust cut height, simply push down on the foot-lift pedal, place the cut-height pin in the desired location, and release the foot-lift pedal to lower the deck to the chosen height.
• Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
• To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever, and release the foot-lift pedal to lower the deck to the chosen height.

ADJUSTABLE STEERING LEVERS

Motion-control levers in operating position



Motion-control levers in park position

Motion control levers are shaped and located for operator comfort and ease of control.

18-position control lever adjustment, low



18-position control lever adjustment, high

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:

• Combined height and fore/aft adjustments provide 18 positions
• Increased operator comfort with more leg room and more hand positions
• Adjustable for most precise control of the machine

TRACKING ADJUSTMENT

Tracking adjustment bolts



Tracking adjustment tool

Tracking adjustment can be made from the operator seat with the provided tool.

PARK BRAKE

Park brake lever



Motion-control levers in park position

The park brake is conveniently located:

• Large lever is easy to use.
• Park brake effectively holds the machine in the parked position.
• Park brake must be engaged (in the upper position) to start the engine.
• Motion-control levers must be in the outward position for the engine to crank.

Brake-and-go logic:

• Park brake must be engaged for the engine to crank.
• Once the engine is started, the park brake must be disengaged before operating the motion-control levers.
• Park brake must be disengaged before operating the motion-control levers or the engine will stall.

SAFETY INTERLOCK SYSTEM

Interlock switch is located under the seat

Safety interlocks help prevent operating in an unsafe way:

• The parking brake must be engaged for the engine to crank.
  • Parking brake is set when motion-control levers are in the outward position.
• The operator presence system requires the operator to be in the seat to operate the PTO.
• The key switch interlock prevents bypass starting.
• If the operator leaves the seat when the PTO is engaged, the controls are in the operating position, or the parking brake is not set, the engine will shut down.
• The seat interlock switch disengages the mower when the operator leaves the seat.
• The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.


  Superior cut quality and productivity from the flat-top design of Accel Deep™ Mower Decks

  ZTrak™ Z515E with 48A Mower Deck



  ZTrak Z515E with 48A Mower Deck

  The 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) Accel Deep Mower Decks are a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

  • 4.83-in. (12.3-cm) (48A/54A) or 4.91-in. (12.5-cm) (60A) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance.
    • Optional MulchControl™ system provides superior mulching performance and versatility.
  • Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
  • Mower deck is suspended from the vehicle for a smooth and level cut.
    • Adjustable mower wheels, positioned just above ground level, help reduce scalping.
  • 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height

  COMPATIBILITY

  Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine

  V-twin engine



  Convenient cover for air cleaner and cleanout port service

  The Z530M and Z530R have a large 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability.

  • Easy inspection and removal of any debris that may have collected using two large cleanout ports that are integrated into the engine shroud over the cylinder heads.
  • Engine service times, reliability, and life are increased with the use of premium engine oil and air filtering systems, as well as the cooling design.

  Experience plenty of power and torque to handle tough mulching, mowing, and bagging conditions with the 24-hp (17.9-kW) V-twin engine:

  • Greater torque, lower vibration, and improved sound quality from the V-twin cylinder design
  • Fast starts with electronic ignition
  • Long engine life with cast-iron cylinder liners
  • Excellent power and fuel economy with overhead valves
  • Reliable operation with in-line fuel filter

  Engine easy access

  The engine speed lever and choke control lever are separate controls:

  • The engine speed lever is easy to use – there is no need to worry about pushing too far and engaging the choke like on single throttle/choke lever systems.

  The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.

  4.5-GAL. (17-L) FUEL CAPACITY FOR EXTENDED MOWING TIMES

  Fuel tank and fuel sight window



  Fuel fill cap

  The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:

  • Longer times between refills with the large tank
  • Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine
  • Easy filling and minimum chance of spills with a large, 3-in. (7.6-cm) diameter fuel opening that is low and angled

  John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

  Protective zone around the operator is provided by the rollover protective structure (ROPS)

  Clean, open operator station



  Standard folding ROPS

  The spacious operator station has been designed for comfort, visibility, and ease of use:

  • Getting on and off easy with the flat operator platform.
  • Convenient-to-use controls are located close to the operator.
  • Operator controls are color coded and designed for easy identification and operation.

  The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

  • It reduces the operator’s risk of being crushed under the vehicle should it overturn.
  • In most situations, the ROPS limits the overturn to little more than 90 degrees.
  • When used with a seatbelt, the ROPS is very effective in preventing deaths and serious injuries.
    • Use of the seat belt is recommended when operating with ROPS in the upright position.

  ROPS folded at intermediate position



  ROPS folded down

  Foldable ROPS and retractable seat belt are standard equipment:

  • Handles on the position pins provide a good grip and make changing the angle of the ROPS easier.
  • The door height of most garages will accommodate the machine with ROPS in the fully raised position.
    • Easy-fold ROPS improves the ability to store the ZTrak™ mower in structures with a lower door opening.

  Model	Height at top of ROPS in fully raised position
  Z515E, Z530R	70.1 in. (178 cm)
  Z530R, Z545R	70.7 in. (179.6 cm)



  Key Specs

  BRAND NEW

  Engine power	24 hp 17.9 kW
  Engine model number	FR730V
  Forward speed	0-8 mph 0-12.9 km/h
  Front caster tires	13×6.5-6
  Drive tires	22×9.5-10
  Seat back height	High back with armrests and ComfortGlide™, 20 in. 50.8 cm
  Width of cut	Accel Deep™ mower deck, 48 in. 122 cm Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm
  Mulching system	Optional MulchControl™ attachment, 48 in. 122 cm Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm
  Warranty	4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

  Engine

  Power	24 hp 17.9 kW
  Model number	FR730V
  Displacement	44.3 cu in. 726 cc
  Cylinders	V-twin
  Lubrication	Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
  Type	Overhead valve
  Battery	12 V 300 CCA
  Choke/speed control	Separate control levers
  Cooling method	Air
  Fuel tank capacity	4.5 U.S. gal. 17 L
  Fuel gauge	Electric gauge and fuel level sight line

  Drive train

  Dual hydros	Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles

  Travel speed

  Forward speed	0-8 mph 0-12.9 km/h
  Reverse speed	0-4 mph 0-6.4 km/h
  Speed and direction control	Twin premium levers
  Control adjustment	2-height/9-fore-aft, 18 positions

  Chassis

  Frame	Heavy-duty frame tubing
  Primer/paint	E-coat/powder
  Front caster tires	13×6.5-6
  Front caster bearings	Sealed ball bearings
  Drive tires	22×9.5-10
  Hour meter	Yes
  Service interval decal	Yes
  Storage compartment	Yes
  Cup holder	Yes
  Maximum towing capacity	250 lb 113 kg

  Seat

  Seat back height	High back with armrests and ComfortGlide, 20 in. 50.8 cm
  Fore-aft adjustment	While seated, 3 in. 7.6 cm
  Seat suspension	Two springs and ComfortGlide

  Lift system

  Type	Foot lift
  Mower cut height	1-4 in. 2.5-10.2 cm
  Cut height increments	0.25 in. 0.64 cm
  Preset cut height	Yes

  Mower deck

  Width of cut	Accel Deep mower deck, 48 in. 122 cm Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm
  Type	Side discharge
  Mower deck material	10 gauge 0.135 in. 3.4 mm
  Mower drive system	V-belt

  PTO

  Type	Electric, 105 lb-ft 142.4 Nm
  Drive	V-belt

  Dimensions

  Wheelbase	49.2 in. 1250 mm
  Overall length	76.9 in. 1953 mm
  Width without mower	46.6 in. 1184 mm
  Width with mower	48A: 62.8 in. 1595 mm 54A: 68.6 in. 1742 mm 60A: 73.4 in. 1864 mm
  Width with mower (deflector raised for storage)	48A: 53.9 in. 1370 mm 54A: 59.7 in. 1517 mm 60A: 65.6 in. 1667 mm
  Height	ROPS in folded position: 48.6 in. 1235 mm ROPS in raised position: 71.1 in. 1806 mm
  Weight	With mower and fuel, 48A, 772 lb 351 kg With mower and fuel, 54A, 780 lb 355 kg With mower and fuel, 60A, 788 lb 358 kg

  Operation

  Rollover protective structure (ROPS)	Yes
  Slope operating limit	15 degrees, 10 degrees with an MCS
  Operator presence system	Yes
  Park brake interlock	Yes
  Operator video	Yes

  Buyer’s notes

  Note 1	Mower wash port makes cleaning the deck easier
  Note 2	Flip-up foot platform for easy service access
  Note 3	18-position adjustable motion-control levers
  Warranty	4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

  Optional attachments

  Mulching system	Optional MulchControl attachment, 48 in. 122 cm Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm
  Rubber floor mat	Foot platform only
  Sun shade	Optional
  Mounted sprayer	No
  Protective cover	No
  Light kit	Optional 4-point LED Light kit
  Material collection system	Power Flow rear bagger, 6.5 bu 230 L Not available on 60A

  Manufacturing location	Greeneville, Tennessee, USA
  Date collected	1-Dec-21

  Mower Deck	Models	Mulching (optional)	Material collection (optional)
  48-in. (122-cm) Accel Deep (48A)	Z530M	MulchControl system	6.5-bu (230-L) two-bag Power Flow™ system
  54-in. (137-cm) Accel Deep (54A)	Z515E, Z530M	MulchControl system	6.5-bu (230-L) two-bag Power Flow system
  60-in. (152-cm) Accel Deep (60A)	Z515E, Z530M	MulchControl system	Not available PRODUCTIVITY – GETTING THE JOB DONE FAST Trim side of Accel Deep Mower Deck Deep mower-deck forging delivers high productivity, which gets the job done fast. It allows room for the cut and suspended material to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass: Greatly improves the mower’s capacity to maintain excellent mowing performance and cut quality in difficult mowing conditions and at higher speeds Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings. Large discharge opening is both high and wide to handle more material: Gives a smooth, even discharge of clippings at all mowing speeds Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging CLEANLINESS – FOR THE MOWER AND THE OPERATOR Accel Deep Mower Deck, trim side Cleaning a mower deck is one of the most frequent maintenance activities. The flat-top shape of the deck forging is optimal for keeping itself and the operator clean: There are few places to catch and hold material on top and underneath the deck. Top of deck stays cleaner, reducing time and effort needed for cleaning and service Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings Less need to clean and remove buildup of material from underside of deck The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck. Limited amount of material drifts onto the operator and mower deck Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations. Mower wash port   Mower wash port with hose connector A wash port and hose connector are provided to make cleaning the underside of the mower deck easy. HOW MULCHCONTROL WORKS MulchControl baffle in open position   MulchControl baffle in closed position MulchControl is an innovative, simple design that is easy to use and maintain: The MulchControl attachment includes baffles to control the flow of material under the deck. The MulchControl baffle, or divider, between the left and middle spindles is about halfway down. The height is designed to balance the mulching and side-discharge modes. When the MulchControl baffle is open, the divider between the left and middle spindles passes a portion of the material to the discharge opening, along with the material from the middle and right spindle areas. When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf. SUPERIOR DURABILITY IS DESIGNED IN Hinged spindle pocket cover   Double-captured mower wheel Accel Deep Mower Decks have strong spindle pockets to keep the blades aligned, even after years of tough service: Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel Ribs in the deck shell add strength where it is needed. Mower wheels are double captured: Provides greater strength and durability for longer, trouble-free life Single-bolt adjustment makes setting wheels to the correct cutting height quick and easy Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life. A 5/8-in. (16-mm) diameter solid-steel rod side guard provides extra strength and protection. Dual-stage E-coat and powder-paint coatings provide extra protection from rust. VERSATILITY – EASY TO CHANGE BETWEEN SIDE DISCHARGE, MULCH, AND BAGGING MODES Accel Deep Mower Decks are designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another: With MulchControl, changing from side discharging to mulching or vice versa is done with the simple flip of a lever. On 48A and 54A Mower Decks, the Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever to move the mulch baffle to the side-discharge position. MULCHCONTROL OPTION The MulchControl system for Accel Deep Mower Decks is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect lawn material. Advantages of mulching grass clippings include: A beautiful looking lawn Grass clippings not blown onto the operator, driveways, or flower beds Less fertilizer required Elimination of the effort needed to dispose of clippings MulchControl handle The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle. The operator is required to get off the machine in order to engage or disengage mulch mode. Changing from mulching to side discharge or vice versa takes only a few seconds. MulchControl is well-suited to the following mowing situations: Usually mulch, but side discharge when grass gets too long Usually side-discharge, but would like to be able to close the chute to control clippings Always mulch a main lawn, but often side discharge secondary lawns Bag clippings, but want to go farther before emptying bags MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed. While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps reduce the amount of material being discharged. Other times this could work as a disadvantage: When cutting strong southern grasses, such as Zoysia and Bermuda When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States When optimum bagging and lawn cleanup is desired 6.5-BU (230-L) POWER FLOW REAR BAGGER (NOT AVAILABLE FOR 60-IN. [152-CM] MOWER DECK) Power Flow rear bagger An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves: The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup. The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags: Easy-to-attach Power Flow blower (ordered separately) Easy-to-attach chute (ordered separately) Air exhaust duct Convenient spring-latch Airflow fill indicator Quik-Tatch™ mounting Sealed hopper top Loose-knit bags available Hopper kit comes with ballast bracket
