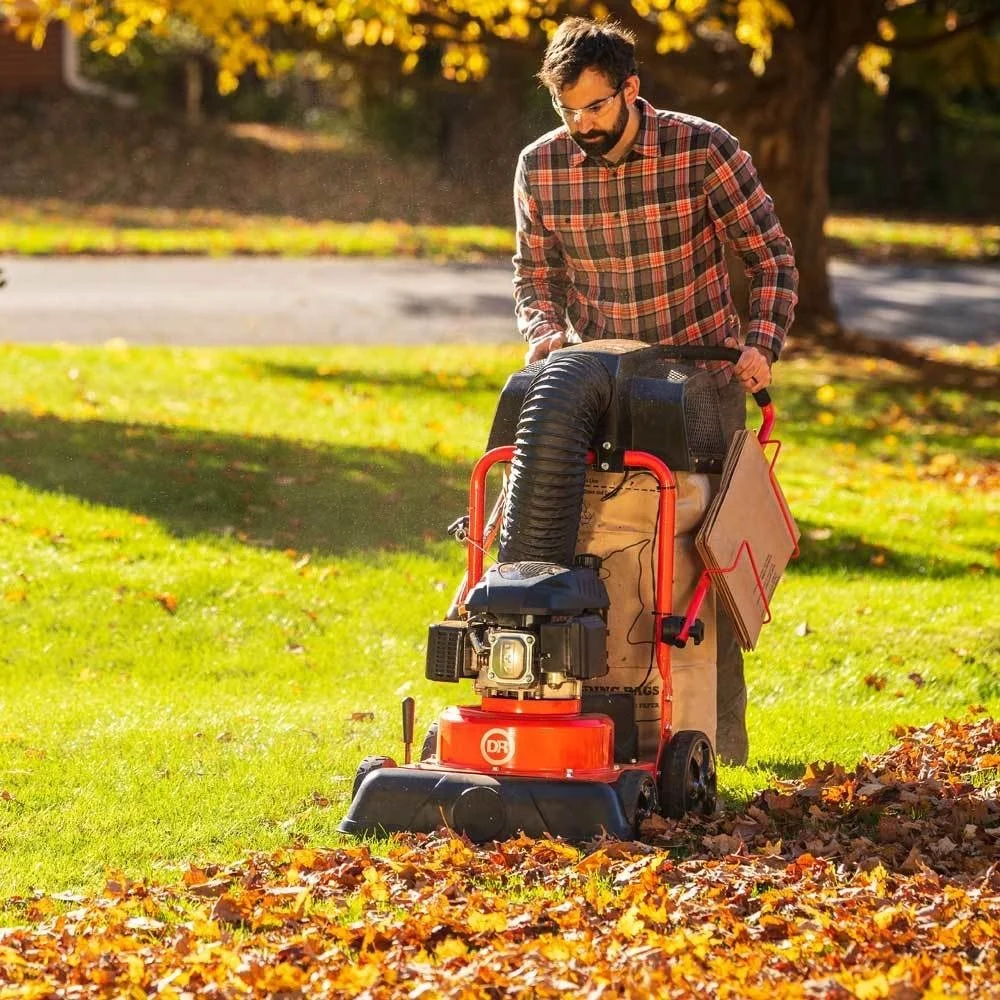

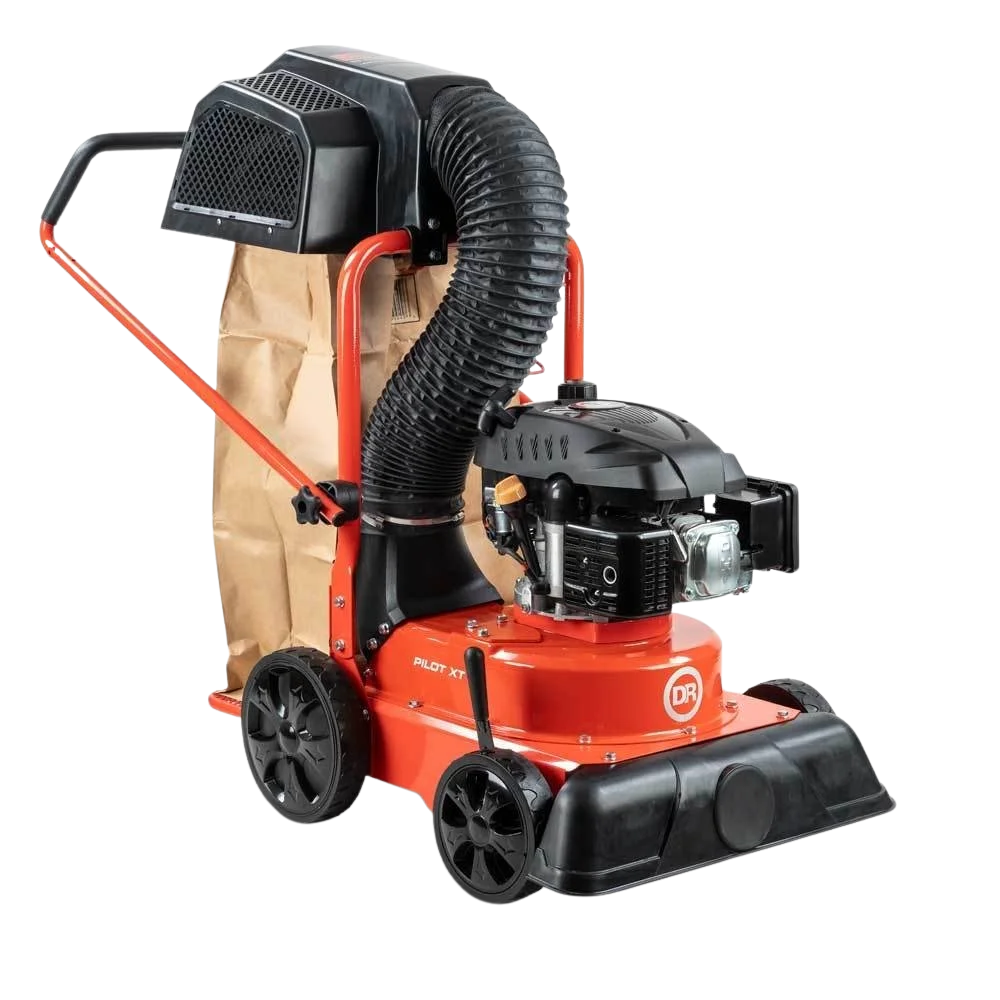

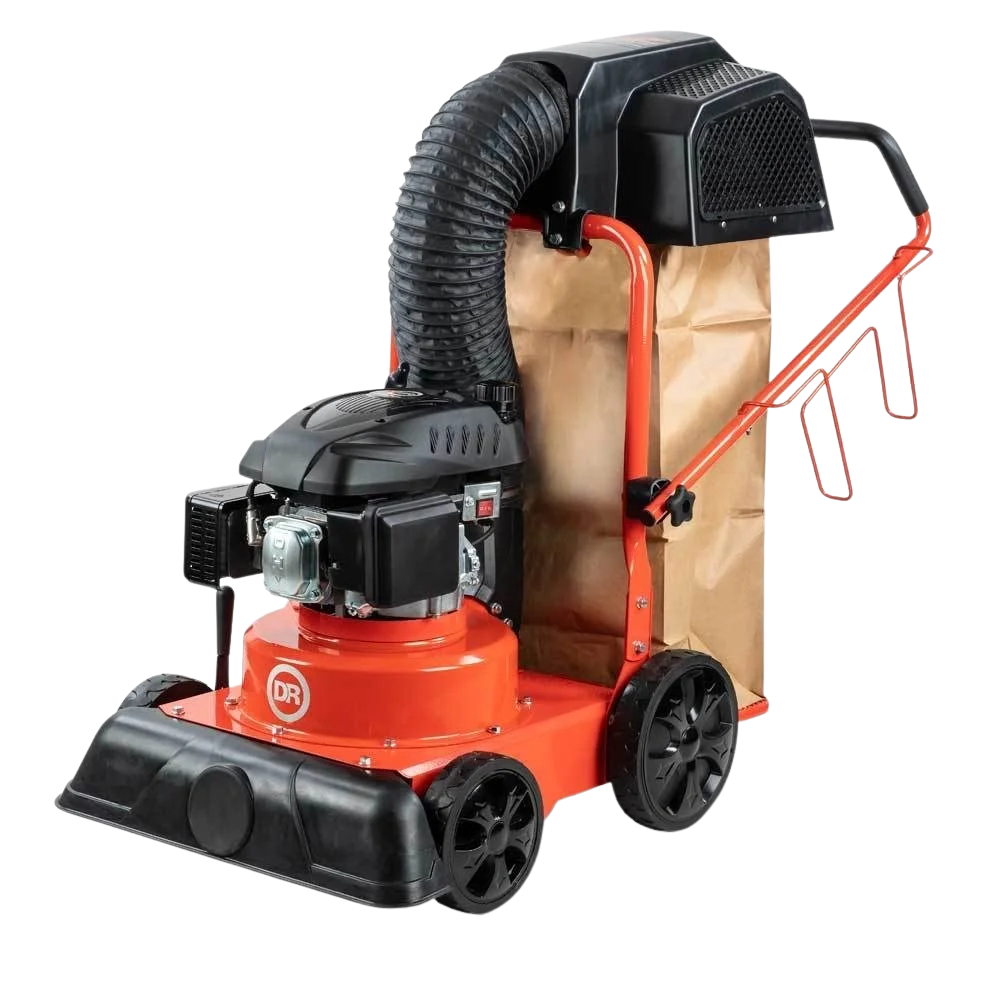

The DR PILOT XTSP Self-Propelled Leaf and Lawn Vac is a powered leaf collection system designed to make seasonal yard cleanup faster, easier, and less labor-intensive. Instead of raking leaves into piles and repeatedly handling loose debris, the PILOT XTSP collects, mulches, and bags leaves directly into standard disposable paper leaf bags.

Its unique EZ Bagger Leaf Collection System makes bag changes quick and straightforward, while the integrated bag caddie keeps additional empty bags conveniently onboard. With a 4.3 HP (173cc) DR OHV engine, self-propelled operation, a 3-cubic-foot collection capacity, and an onboard chipper capable of processing branches up to 1.5 inches in diameter, the PILOT XTSP is designed to handle a wide range of residential lawn and property cleanup tasks.

Key Features

4.3 HP DR OHV Engine

The PILOT XTSP is powered by a 173cc DR OHV engine designed to provide dependable performance for leaf collection and yard cleanup.

• 4.3 HP output


• 173cc displacement


• DR OHV engine


• Electric start


• Recoil backup

Self-Propelled Operation

Self-propelled drive helps reduce the effort required to move the machine across the yard during extended cleanup sessions.

• Powered forward movement


• Reduces pushing effort


• Designed for residential lawn cleanup

EZ Bagger Leaf Collection System

The EZ Bagger system is designed around standard disposable paper leaf bags, making collection and disposal simple.

To install a bag:

1. Unlatch the EZ Bagger cover.


2. Place an empty leaf bag on the fold-down platform.


3. Crimp the bag around the support ring.


4. Latch the EZ Bagger closed.


5. Collect and mulch leaves directly into the bag.

When full, each bag can contain up to 50 pounds of mulched leaves, making it ready for curbside pickup or composting.

3 Cubic-Foot Collection Capacity

The PILOT XTSP can collect a substantial quantity of mulched leaves before the bag needs to be replaced.

• Collection capacity: 3 cu. ft.


• Up to 50 lbs of mulched leaves per bag


• Uses standard disposable paper leaf bags

Included Bag Caddie

The integrated paper-bag caddie provides convenient onboard storage for additional collection bags.

• Included bag caddie


• Holds up to 10 empty leaf bags


• Optional second carrier available


• Optional configuration can carry up to 20 bags

Onboard Chipper

The PILOT XTSP does more than collect leaves. Its onboard chipper can process sticks and branches, helping clear additional yard debris during cleanup.

• Handles sticks and branches


• Chipping capacity up to 1.5 inches in diameter


• Integrated into the leaf-vac system

Durable Steel Impeller

An all-steel impeller provides a rugged internal component designed for demanding yard-cleanup use.

• All-steel impeller


• Lifetime warranty on impeller


• Designed for repeated leaf and debris processing

Adjustable Intake Height

The intake can be adjusted to accommodate different lawn and debris conditions.

• Intake height: 1–4 inches


• Adjustable collection height


• Designed for leaves and lawn debris

Never-Flat Wheels

The PILOT XTSP uses never-flat wheels designed to simplify operation and reduce concerns about conventional pneumatic tire maintenance.

• Front: 8 × 2 inches


• Rear: 10 × 2 inches


• Never-flat construction

Specifications

Engine & Starting

Specification	Details
Engine	DR OHV
Displacement	173cc
Power	4.3 HP
Starting System	Electric Start
Backup Start	Recoil

Leaf Collection

Specification	Details
Collection Capacity	3 cu. ft.
Maximum Bag Capacity	Up to 50 lbs of mulched leaves
Bag Type	Standard Disposable Paper Leaf Bags
Bag Caddie	Included
Standard Bag Caddie Capacity	10 Bags
Optional Second Carrier	Up to 20 Bags Total

Chipping & Intake

Specification	Details
Onboard Chipper	Yes
Maximum Branch Diameter	1.5 in
Intake Height	1–4 in
Impeller	All-Steel
Impeller Warranty	Lifetime

Wheels & Weight

Specification	Details
Front Wheels	8 × 2 in Never-Flat
Rear Wheels	10 × 2 in Never-Flat
Machine Weight	120 lbs
Propulsion	Self-Propelled

Warranty

Component	Warranty
Engine	2 Years Residential
Machine	2 Years Residential
Steel Impeller	Lifetime Warranty

Ideal Applications

• Residential leaf cleanup


• Lawn and yard maintenance


• Fall leaf collection


• Mulching leaves for disposal or composting


• Collecting leaves directly into paper bags


• Chipping small sticks and branches


• Property cleanup


• Seasonal outdoor maintenance

Easy Leaf Collection Workflow

The PILOT XTSP is designed to streamline the entire leaf-cleanup process. Leaves are collected and mulched directly into a disposable paper bag, reducing the need to rake large piles by hand and repeatedly transfer loose material.

Once the bag is full, it can be removed for curbside disposal or composting, while another empty bag can quickly be installed using the EZ Bagger system.

Operator Safety & Guidance

Always read and follow the manufacturer's operating and safety instructions before using the PILOT XTSP. Wear appropriate eye and hearing protection, sturdy footwear, gloves, and suitable outdoor work clothing.

Keep hands, feet, clothing, and loose objects away from the intake, impeller, chipper, and other moving components. Never attempt to clear a blockage while the machine is running.

Use only appropriate debris within the stated 1.5-inch maximum branch diameter for the onboard chipper.

Basic Care & Maintenance

• Inspect the machine before each use.


• Keep the intake and discharge areas clear of accumulated debris.


• Inspect the impeller and chipper area regularly.


• Check wheels and hardware for damage or looseness.


• Maintain the engine according to the manufacturer's service recommendations.


• Check engine oil regularly.


• Keep the paper-bag system clean and properly installed.


• Store the machine in a clean, dry location when not in use.

Why Choose the DR PILOT XTSP?

The DR PILOT XTSP combines self-propelled operation, a 173cc OHV engine, EZ Bagger collection, 3-cubic-foot capacity, onboard chipping, adjustable intake height, and durable steel impeller construction into one residential yard-cleanup machine.

By collecting and mulching leaves directly into standard disposable bags—and providing onboard storage for additional bags—the PILOT XTSP offers a practical alternative to the repetitive work of raking, piling, and manually bagging leaves.
