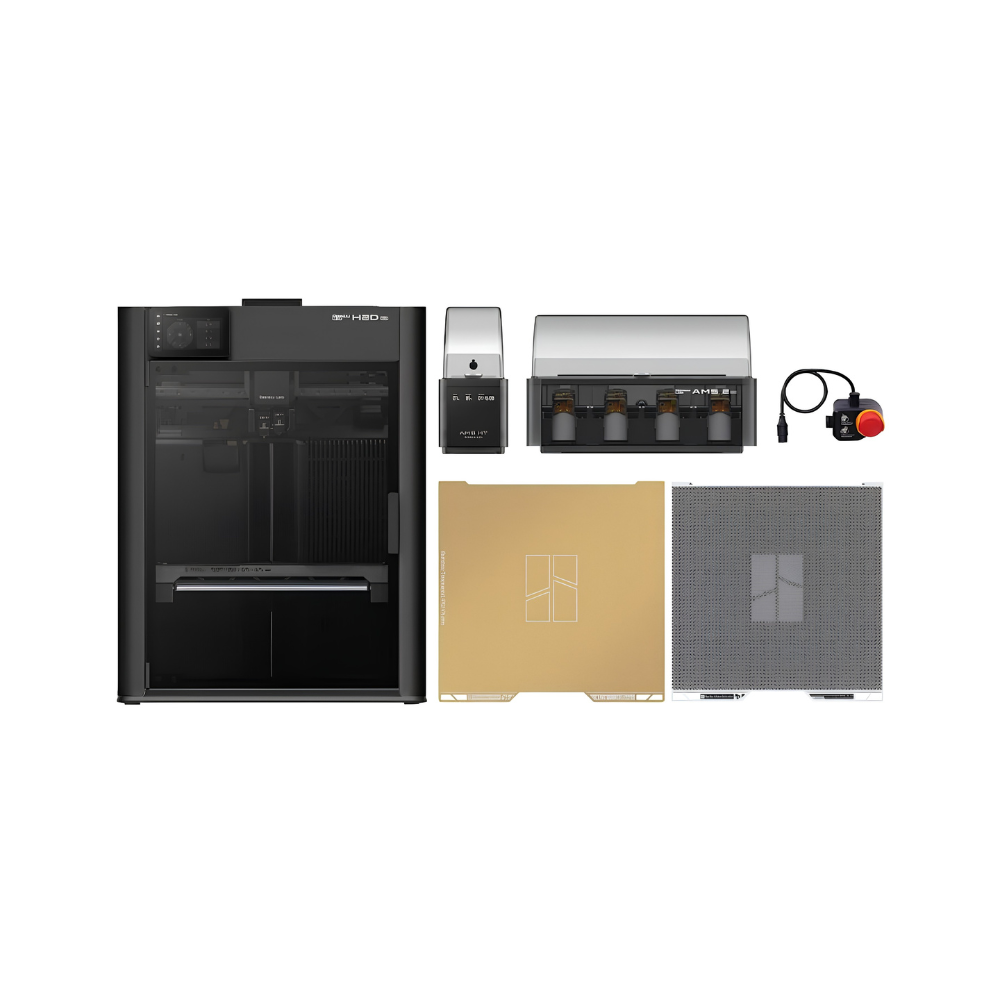

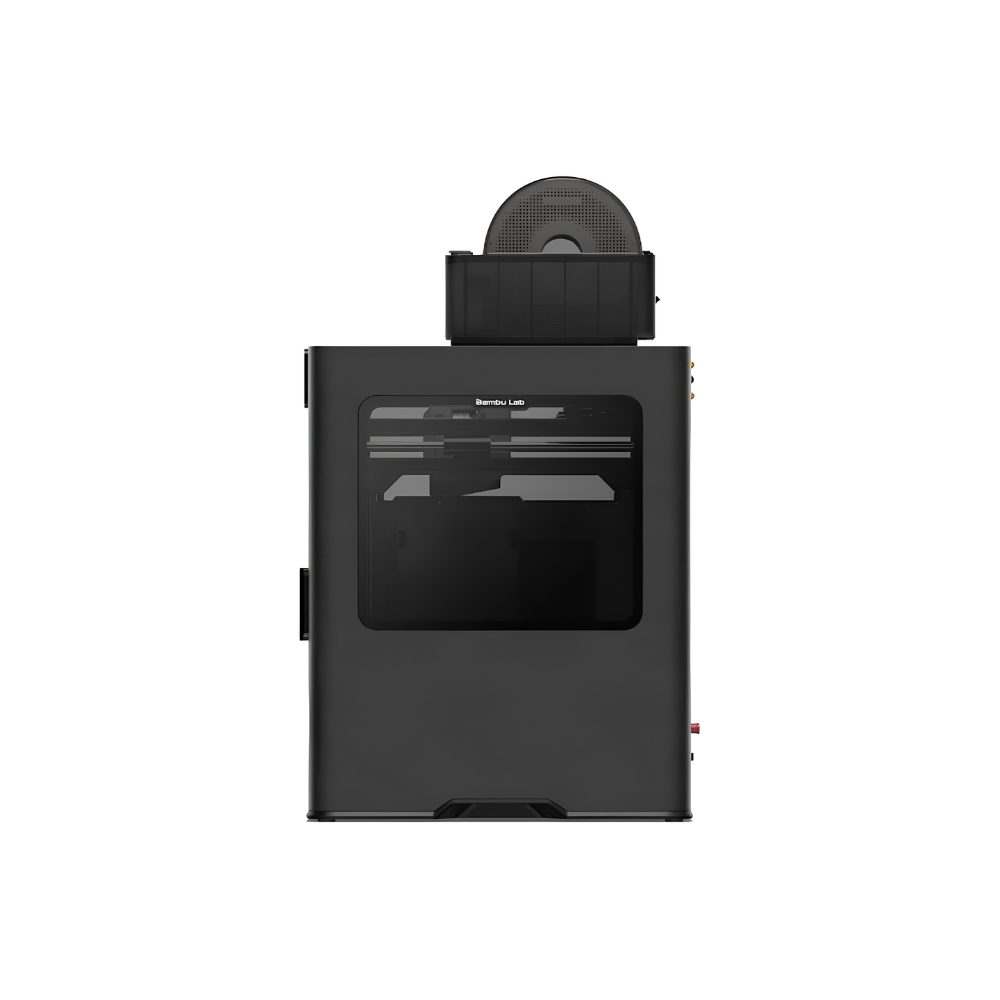

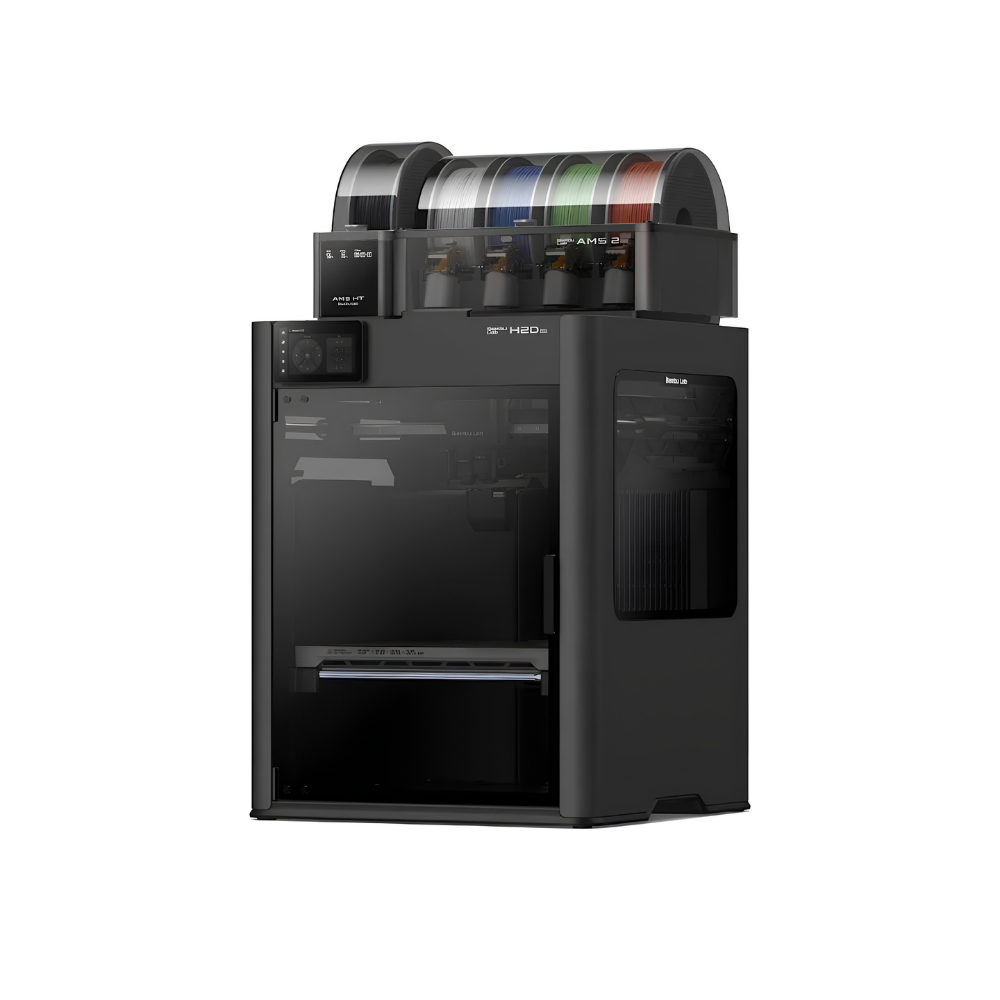

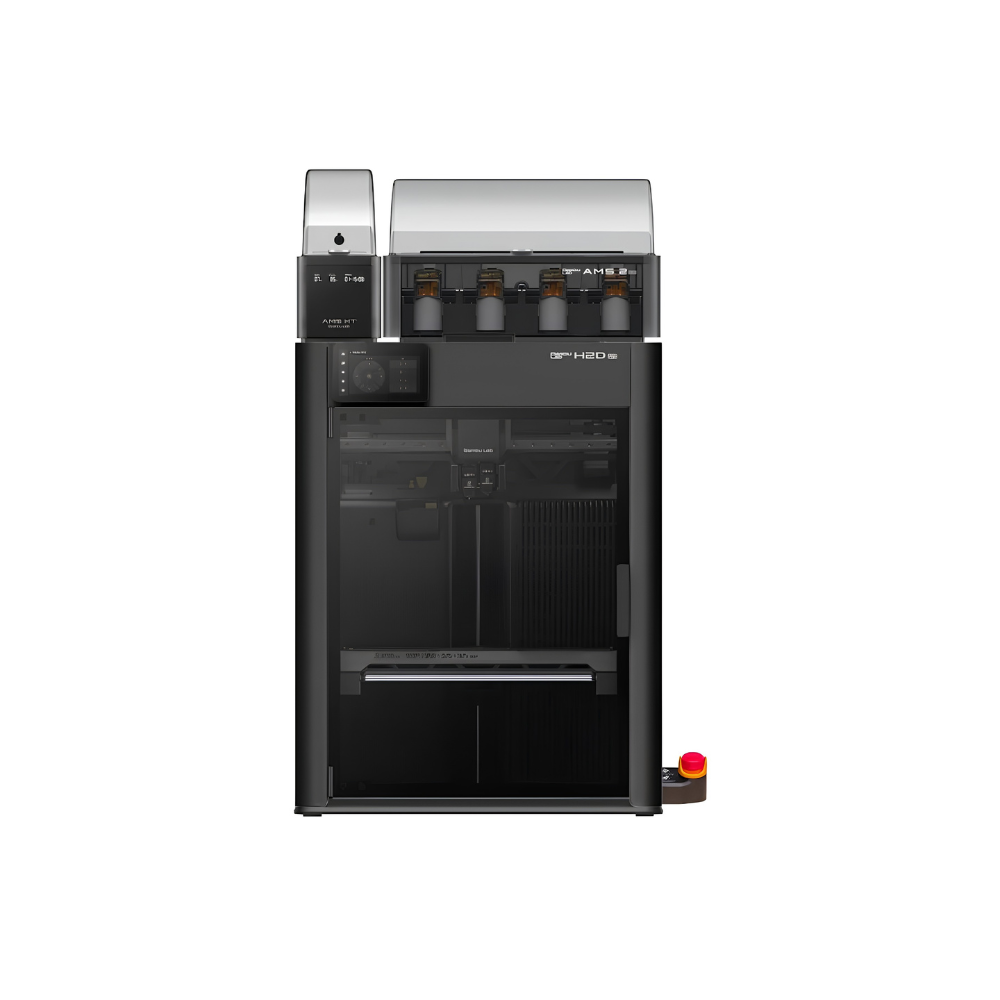

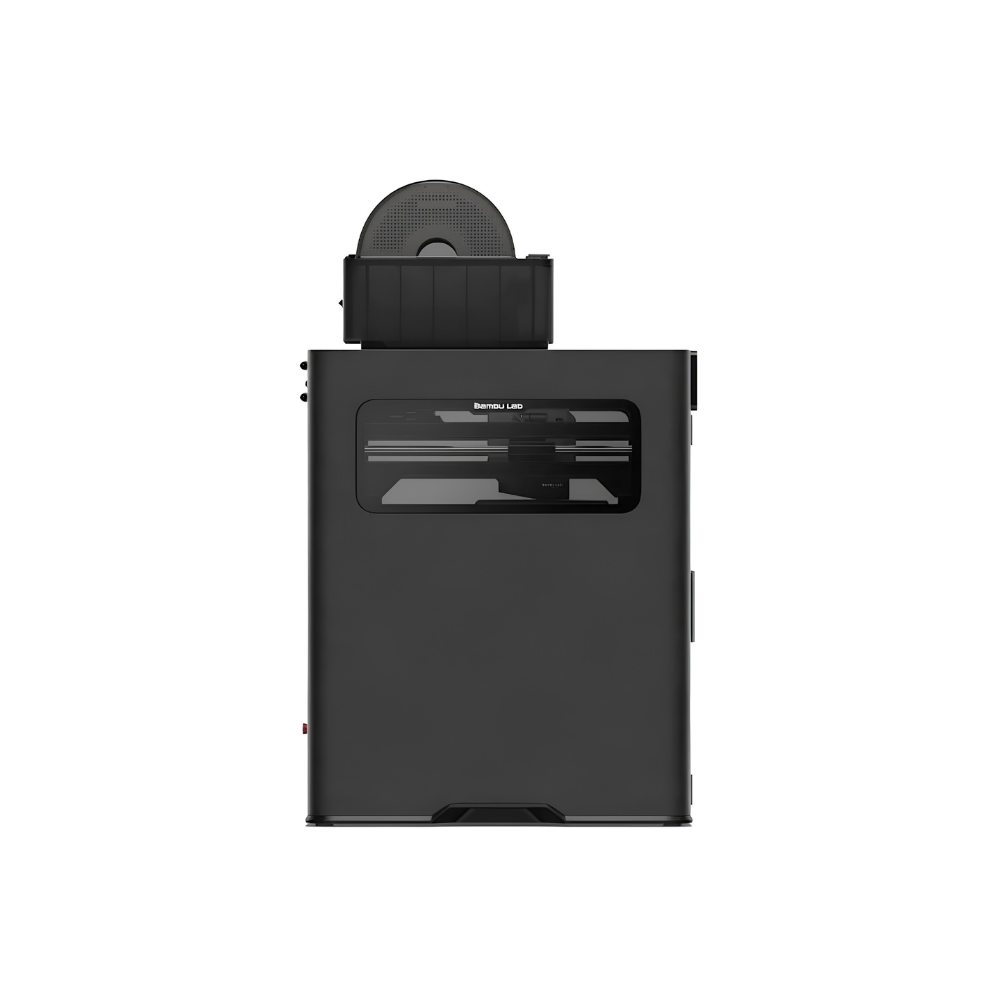

Bambu Lab H2D Pro 3D Printer

Professional-Grade 3D Printing for Demanding Applications

Experience superior production results with the Bambu Lab H2D Pro 3D Printer, engineered for professionals and organizations that demand exceptional print quality, advanced security, reliability, and productivity.

The H2D Pro combines high-temperature dual-nozzle printing, enterprise-grade network security, precision motion control, and advanced environmental management to deliver consistent, high-quality 3D prints. With a 350°C dual-nozzle system, 65°C heated chamber, tungsten carbide nozzle, Vision Encoder Calibration, secure Ethernet and WPA2-Enterprise connectivity, and built-in safety features, the H2D Pro is designed to meet demanding professional and industrial workflows.

Key Features

• 350°C Dual-Nozzle System – Enables printing with a wide range of advanced engineering materials.


• Tungsten Carbide Nozzle – Provides exceptional durability and extended service life.


• 65°C Heated Chamber – Helps produce strong, dimensionally stable, and warp-resistant prints.


• Enterprise-Grade Connectivity – Supports secure Ethernet and WPA2-Enterprise Wi-Fi connectivity.


• Physical Network Kill Switch – Provides an additional layer of network security for enterprise environments.


• Vision Encoder Calibration – Delivers ultra-precise motion accuracy down to 50 µm.


• Adaptive Air Circulation & HEPA Filtration – Helps maintain a cleaner and safer operating environment.

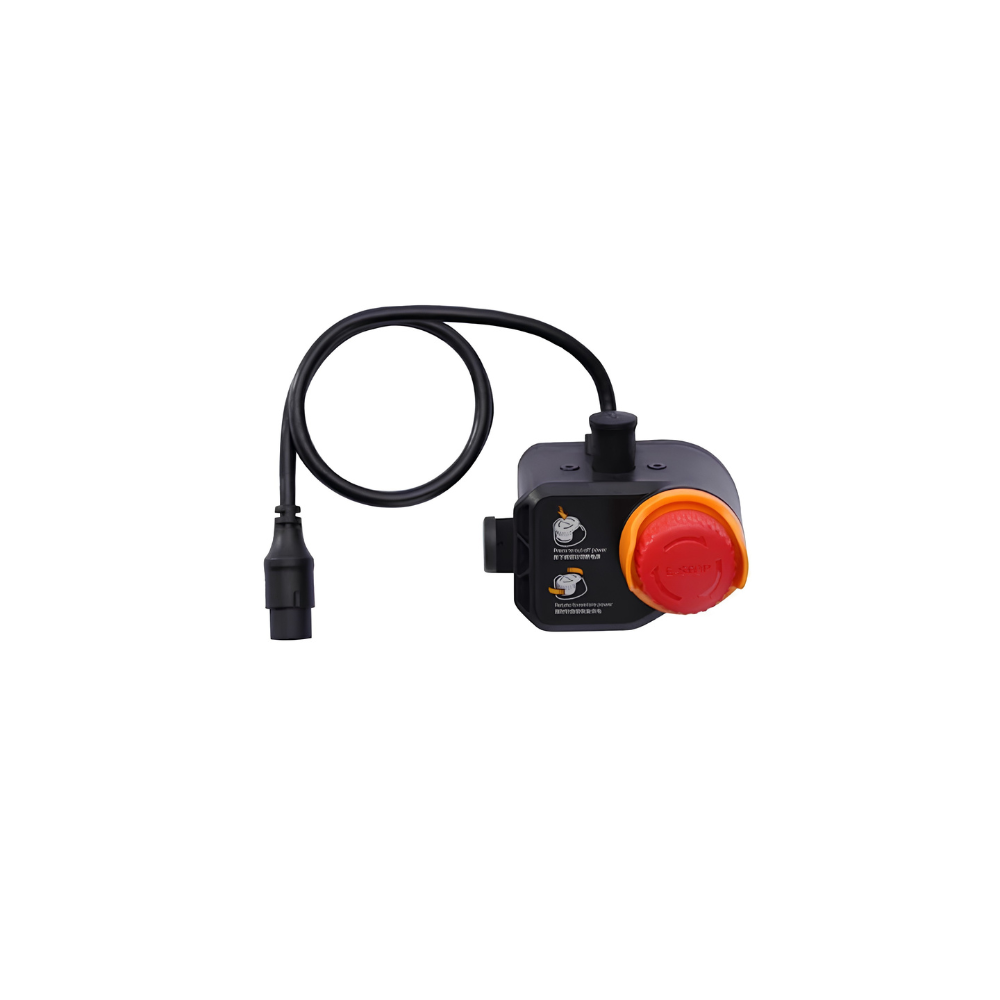

• Emergency Button – Included to meet industrial safety requirements.


• Fully Automated Bed Leveling – Simplifies setup and helps maintain reliable print quality.


• Swappable Nozzle System – Allows convenient nozzle replacement and maintenance.


• Power Loss Recovery – Helps resume printing after unexpected power interruptions.


• Advanced Camera System – Multiple built-in cameras provide monitoring and enhanced print management.

Specifications

General

Specification	Details
Technology	Fused Deposition Modeling (FDM)
Motion System	CoreXY
Assembly	Fully Assembled
Country of Manufacture	China

Machine Dimensions

Specification	Details
Outer Dimensions (without AMS)	492 × 514 × 626 mm (19.4″ × 20.2″ × 24.6″)
Net Weight (without AMS)	31 kg (68.4 lb)

Printing Parameters

Specification	Details
Build Volume – Single Extrusion	325 × 320 × 325 mm (12.79″ × 12.59″ × 12.79″)
Build Volume – Dual Extrusion	300 × 320 × 325 mm (11.81″ × 12.59″ × 12.79″)
Total Volume for Two Nozzles	350 × 320 × 325 mm (13.77″ × 12.59″ × 12.79″)
Filament Diameter	1.75 mm
Extrusion	Dual Extrusion
Extruder Motor	Bambu Lab High-Precision Permanent Magnet Synchronous Motor
Extruder Gear	Hardened Steel
Hotend	All-Metal
Nozzle Material	Tungsten Carbide
Maximum Nozzle Temperature	350°C
Standard Nozzle Size	0.4 mm
Maximum Build Plate Temperature	120°C
Standard Build Surface	Flexible Textured PEI Plate
Optional Build Surface	Smooth PEI Plate
Maximum Toolhead Speed	1000 mm/s
Maximum Toolhead Acceleration	20,000 mm/s²
Maximum Flow Rate (Standard Flow Hotend)	40 mm³/s*
Active Chamber Heating	Supported
Maximum Chamber Temperature	65°C

Air Purification

Specification	Details
Pre-Filter	G3
HEPA Filter	H12
VOC Filtration	Activated Carbon
Carbon Filter Type	Granulated Coconut Shell
Particulate Matter Filtration	Superior Filtration

Cooling System

All major cooling systems feature closed-loop control, including:

• Part Cooling Fan


• Hotend Cooling Fan


• Main Control Board Fan


• Chamber Exhaust Fan


• Chamber Heat Circulation Fan


• Auxiliary Part Cooling Fan

Printer Features

Feature	Details
Enclosed	Yes
Frame	Plastic & Glass, Aluminum & Steel
Filament Cutter	Built-In
Build Plate	Magnetic, Flexible
Bed Leveling	Fully Automated
Emergency Button	✓
Swappable Nozzle System	✓
Power Loss Recovery	✓

Camera System

Camera	Resolution
Live View Camera	Built-In, 1920 × 1080
Nozzle Camera	Built-In, 1920 × 1080
BirdsEye Camera	Built-In, 3264 × 2448
Toolhead Camera	Built-In, 1920 × 1080

Sensors

• Door Sensor – Supported


• Filament Runout Sensor – Supported


• Filament Tangle Sensor – Supported


• Filament Odometry – Supported with AMS

Compatible Materials

Third-Party Filament

Supported.

Supported Materials

• PLA


• PETG


• TPU


• PVA


• BVOH


• ABS


• ASA


• PC


• Nylon / PA


• PET


• PPS


• PPA


• Carbon Fiber-Reinforced Filament variants


• Glass Fiber-Reinforced Filament variants

Carbon/glass fiber-reinforced variants are supported for the applicable materials listed above.

Communication & Display

Specification	Details
Display	5″ Capacitive Touch Screen
Display Resolution	720 × 1280
Storage	Built-In 8 GB eMMC + USB Port
Control Interface	Touchscreen, Mobile App, PC App
Motion Controller	Dual-Core Cortex-M4 + Single-Core Cortex-M7
Application Processor	Quad-Core 1.5 GHz ARM A7
Neural Processing Unit	2 TOPS

Network Control

Specification	Details
Connectivity	Wi-Fi, Ethernet
Network Kill Switch	Wi-Fi & Ethernet
Wi-Fi Frequency Range	2400–2483.5 MHz
Wi-Fi Security	WPA2-Enterprise
Authentication	EAP-PEAP, EAP-TLS, TAP-TTLS
Wi-Fi Transmitter Power (EIRP)	≤21.5 dBm (FCC); ≤20 dBm (CE/SRRC)
Wi-Fi Protocol	IEEE 802.11 b/g/n
Ethernet Socket	RJ45
Ethernet Speed	100 Mbps / Full Duplex
Removable Network Module	Yes
802.1X Network Access Control	Yes

Software

Specification	Details
Slicing Software	Bambu Studio
Third-Party Slicers	Supported via standard G-code export
Compatible Third-Party Slicers	SuperSlicer, PrusaSlicer, Cura, etc.
Compatible Operating Systems	Windows, macOS
Supported File Formats	STL, 3MF

Note: Certain advanced features may not be supported when using third-party slicers.

Power Requirements

Specification	Details
Input Voltage	100–120 VAC / 200–240 VAC, 50/60 Hz
Maximum Power	1320 W @ 110 V / 2200 W @ 220 V
Average Power	1050 W @ 110 V / 1050 W @ 220 V

Why Choose the Bambu Lab H2D Pro?

The Bambu Lab H2D Pro is built for organizations that need more than a standard desktop 3D printer. Its combination of dual-nozzle high-temperature printing, heated chamber, precision motion control, enterprise-grade networking, advanced filtration, automated calibration, and industrial safety features makes it well suited for professional prototyping, engineering applications, production workflows, and demanding material requirements.

With high-speed CoreXY motion, advanced monitoring cameras, secure connectivity, and support for a broad range of engineering-grade materials, the H2D Pro provides a powerful platform for reliable, precise, and efficient professional 3D printing.
